As the demand for renewable energy continues to grow, biogas plants are playing an increasingly important role in reducing waste and generating sustainable power.
However, while the process of producing biogas is environmentally beneficial, it can also release strong and unpleasant odours if not properly controlled.
Unmanaged odours can cause complaints from local communities, lead to environmental non-compliance, and even impact staff welfare.
The solution lies in advanced air treatment systems—particularly the use of activated carbon filters designed specifically for biogas operations.
A well-engineered biogas carbon filter for odour can effectively capture and neutralise odorous gases, ensuring clean, compliant, and odour-free air around the plant.

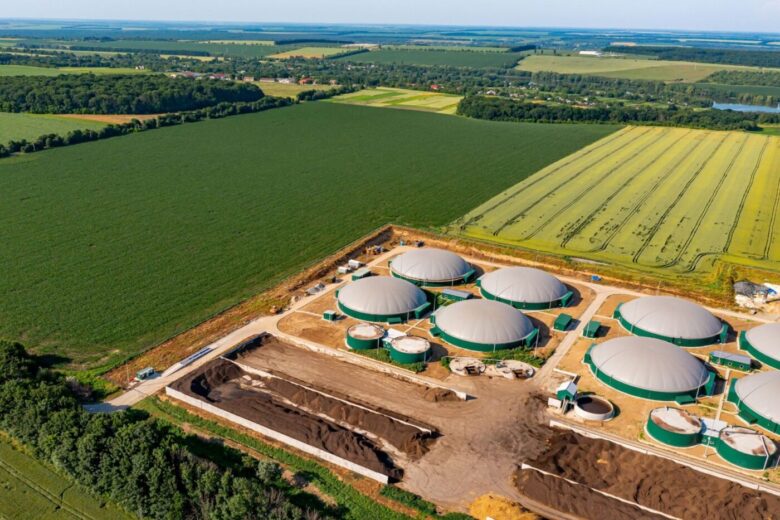

Understanding Odour Generation in Biogas Plants
Biogas is produced through the anaerobic digestion of organic materials such as food waste, animal slurry, and agricultural residues.
During this process, microorganisms break down organic matter in the absence of oxygen, releasing methane and carbon dioxide as primary gases.
Alongside these beneficial gases, a range of volatile compounds can be produced, including:
- Hydrogen sulphide (H₂S): Responsible for the characteristic “rotten egg” smell, even in low concentrations.
- Ammonia (NH₃): Commonly released from nitrogen-rich feedstocks or digestate handling.
- Volatile organic compounds (VOCs): Organic chemicals that easily evaporate and contribute to odour intensity.
- Mercaptans and sulphides: Extremely pungent compounds with low odour thresholds.
These odours can originate from feedstock reception areas, digesters, gas storage systems, and digestate treatment zones. Without a reliable treatment method, they can quickly become a significant issue for plant operators.
The Role of Carbon Filters in Odour Control
Activated carbon filters are among the most widely used and effective solutions for odour management in industrial and biogas applications.
They operate on the principle of adsorption, where gas molecules adhere to the surface of activated carbon granules.
The carbon used in these systems has an enormous internal surface area—up to 1,000 m² per gram—allowing it to trap and hold odorous compounds efficiently.
Once the carbon becomes saturated, it can be regenerated or replaced, depending on the system design.

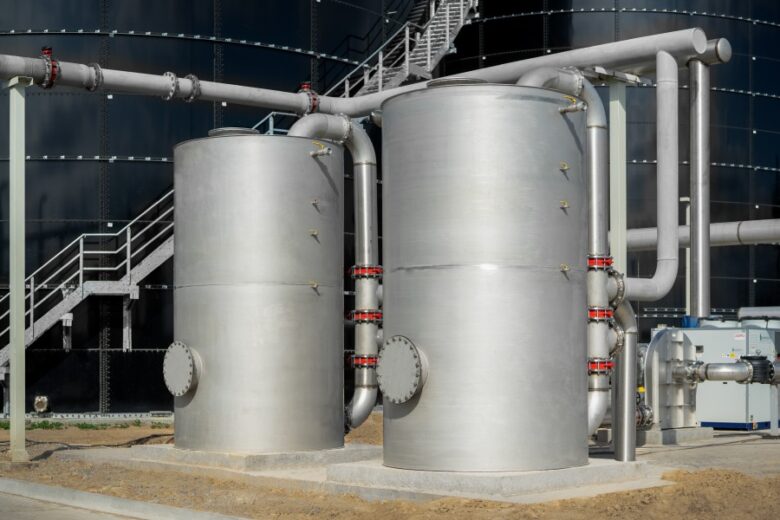

A high-quality biogas carbon filter for odour ensures continuous treatment of contaminated air streams, removing unpleasant smells and harmful gases before they are released into the atmosphere.
How a Biogas Carbon Filter Works
- Air Extraction: Contaminated air from the biogas process is collected via ducting or extraction hoods.
- Pre-Filtration (Optional): Larger particles, moisture, or acidic gases may be removed through pre-treatment stages such as demisters or scrubbers.
- Activated Carbon Filtration: The air passes through a bed of activated carbon granules that adsorb odorous molecules and chemical contaminants.
- Clean Air Discharge: Treated air is safely vented into the atmosphere with odour levels reduced to below detectable limits.
Modern systems can incorporate sensors to monitor pressure drop and saturation levels, providing early warning when filters need servicing or replacement.

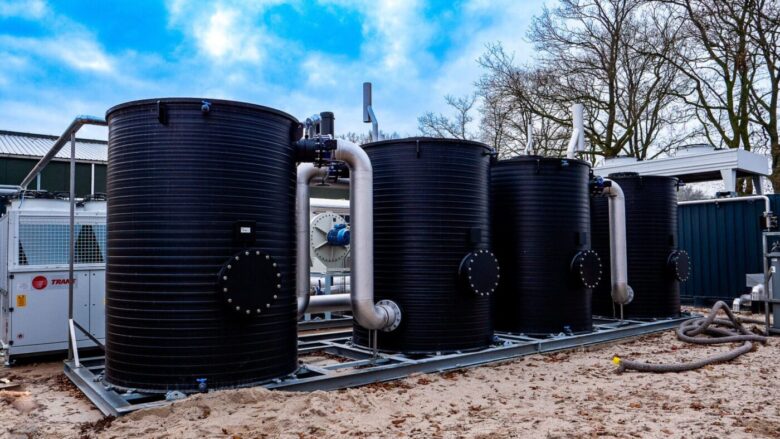

Advantages of Using Carbon Filters in Biogas Applications
1. High Efficiency in Odour Removal
Activated carbon is capable of capturing a wide range of organic and inorganic compounds, making it ideal for tackling complex biogas odours. It can remove hydrogen sulphide, VOCs, and other trace gases effectively.
2. Simple Operation and Maintenance
Carbon filters are passive systems requiring minimal maintenance once installed. They have no moving parts, are energy-efficient, and can operate continuously without supervision.
3. Cost-Effective Long-Term Solution
Compared to more complex chemical scrubbing systems, carbon filters offer an economical odour-control option with straightforward installation and low operating costs.

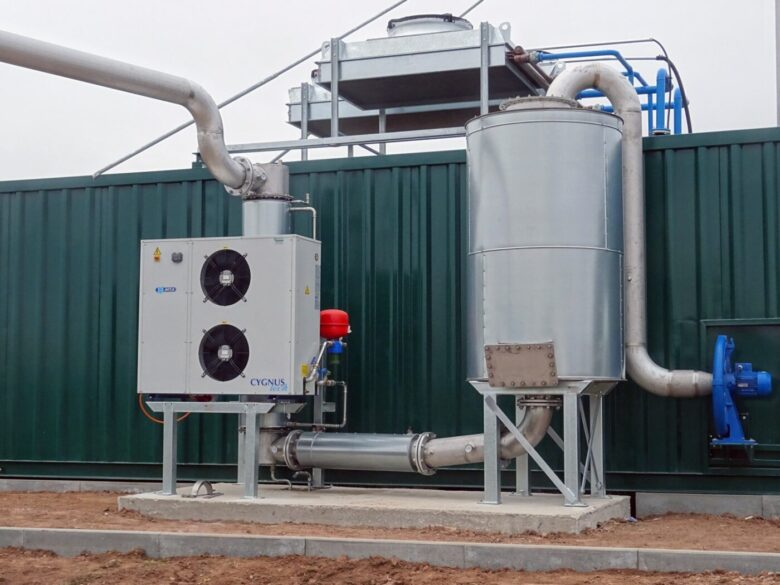

4. Compact and Scalable Design
Available in modular configurations, carbon filters can be scaled up or down to suit small-scale digesters or large-scale industrial biogas facilities.
5. Environmentally Friendly
Activated carbon is a natural material, and spent carbon can often be reactivated for reuse, supporting sustainability goals within the renewable energy sector.
Integration with Other Odour Control Systems
While carbon filters are highly effective on their own, they are often used in combination with other odour-control methods to achieve maximum efficiency.
- Biofilters: Treat high-volume, low-concentration air streams before final carbon polishing.
- Chemical Scrubbers: Remove acidic or alkaline gases upstream, extending the life of the carbon media.
- Enclosures and Extraction Systems: Contain and capture odours directly at the source for treatment.
A multi-stage approach ensures comprehensive removal of both particulate and gaseous pollutants, providing clean discharge air that meets strict environmental standards.
Design Considerations for Biogas Carbon Filters
An effective odour-control system must be tailored to the unique conditions of each biogas plant. Factors that influence system design include:
- Airflow Volume: The amount of contaminated air that must be treated per hour.
- Gas Composition: The concentration and type of odorous compounds.
- Humidity and Temperature: Moisture can reduce adsorption efficiency if not properly managed.
- Space and Layout: Filters can be installed horizontally or vertically to suit site constraints.
- Maintenance Accessibility: Ensuring easy replacement of carbon media.
Professional engineering design ensures optimal performance, long filter life, and compliance with emission regulations.

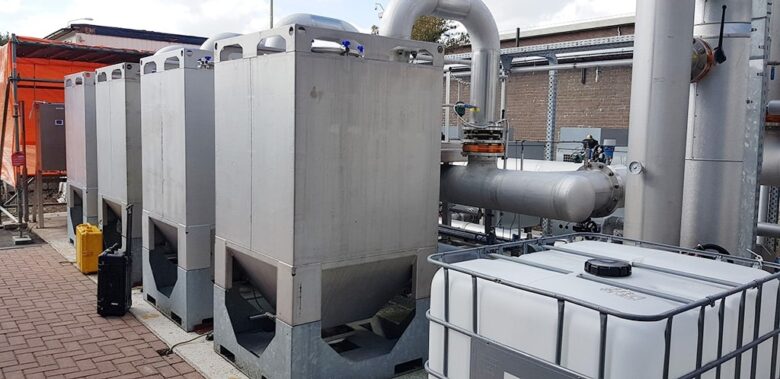

Monitoring and Maintenance
Maintaining consistent performance requires regular checks on airflow rates and filter condition.
Over time, the carbon media becomes saturated and must be replaced or regenerated. Indicators of reduced performance include:
- Noticeable odour breakthrough
- Increased pressure drop across the filter
- Discolouration of the carbon media
Scheduled maintenance helps prevent downtime and ensures that odour control remains effective throughout the plant’s operation.
Exeon’s Expertise in Industrial Odour Control
As a specialist in air and emission management, Exeon provides comprehensive solutions for controlling odours in biogas, waste, and industrial facilities.
Their range of advanced air filtration systems includes high-performance biogas carbon filter for odour units designed to meet the demanding requirements of modern anaerobic digestion plants.
Exeon’s systems combine robust engineering with cutting-edge filtration technology to ensure consistent compliance with environmental regulations.
Each installation is bespoke—designed around the client’s process layout, airflow, and emission characteristics.
Typical features of Exeon’s carbon filtration systems include:
- High-capacity activated carbon media for extended service life
- Pre-filtration options for dust and moisture removal
- Corrosion-resistant construction for harsh environments
- Optional monitoring sensors for pressure and odour levels
- Modular design for easy scalability
From concept and design to installation and ongoing maintenance, Exeon delivers end-to-end support to ensure every system operates at maximum efficiency.
Environmental and Operational Benefits
Beyond odour elimination, carbon filtration systems contribute to the overall sustainability of biogas operations. By reducing harmful gas emissions and improving local air quality, they help plants maintain strong community relations and regulatory compliance.
Operators also benefit from improved working conditions, lower maintenance requirements, and a reliable, long-term odour-control strategy that supports both economic and environmental objectives.
Conclusion
Odour control is a crucial aspect of running a successful and sustainable biogas facility. Without effective treatment, emissions of hydrogen sulphide, ammonia, and other compounds can lead to serious environmental and reputational challenges.
By investing in a professionally designed biogas carbon filter for odour system, plant operators can ensure clean air, regulatory compliance, and community confidence.
With decades of experience in industrial air-filtration engineering, Exeon offers tailored carbon-based odour-control solutions that deliver reliability, efficiency, and environmental protection—helping biogas facilities continue their vital role in a cleaner, greener future.
